Besides elbow, tee and reducer, our company is also able to produce other alloy steel pipe fittings with customized shape based on customers’ requirements, which contains pipe cross and pipe bend. These special pipe fittings are applied for pipe connections at the branch location of main pipe in pipe systems.
Common alloy steel features great tenacity, thermal conductivity and electrical conductivity. It could also be a kind of carbon steel which is alloyed with other alloying elements to improve its various properties, including abrasion resistance, corrosion resistance and low temperature resistance, etc. The properties will vary depending on the alloying element types and percentages. As a kind of alloy steel, low temperature service steel, is specifically used for production of pipe fittings applied in circumstances with temperature ranging between -20 and -253℃.
Sample Exhibition

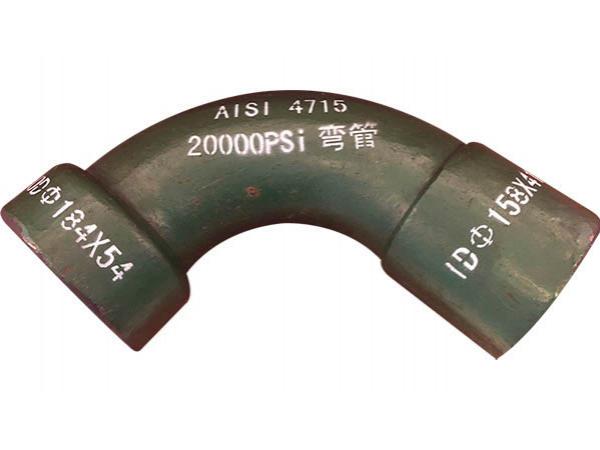

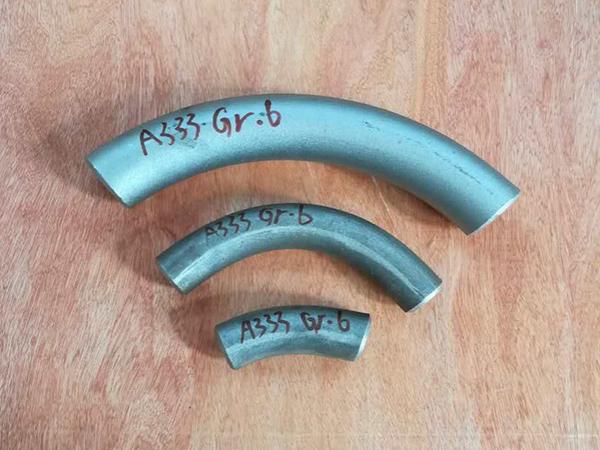

Low temperature steel bend
1. Seamless alloy steel pipe fittings
With more than 35 years experience of pipe fitting production and a whole set and full size moulds, we are fully capable of producing seamless alloy steel pipe fittings with different dimensions and shapes according to customers’ requirements through cold press forming by mold or hot press forming by mandrel.

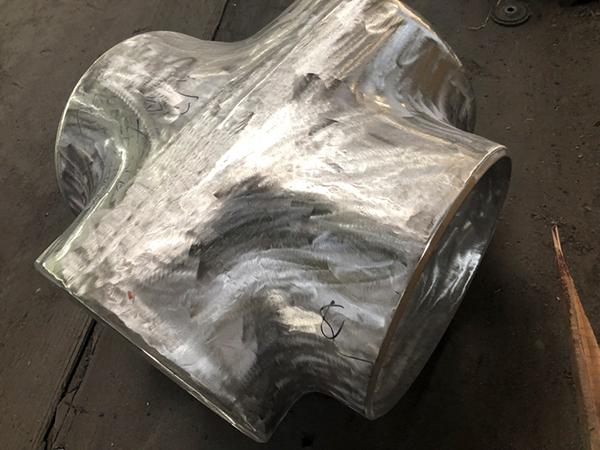

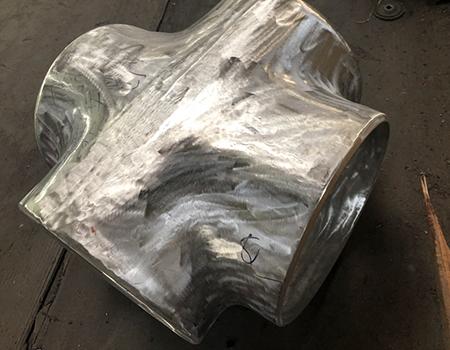

Large size alloy steel pipe fittings
2. Large size alloy steel pipe fittings
If required, we are also able to produce alloy steel cross, alloy steel cap and other special pipe fittings with large size by placing alloy steel plate into corresponding mould and conducting compressing moulding process.
Nickel alloy elbow
3. Forged alloy steel pipe fittings
Through forging process, we can also manufacture alloy steel socket weld pipe fittings or threaded pipe fittings.
Recommended Applications
An extensive use of alloy steel fittings can be found in the following industries:
Petrochemical industry: Oil refining, ethylene, coal to oil, coal to olefins and other projects.
Natural gas industry: LNG ships, LNG terminals, and natural gas pipeline projects.
Power station industry: In thermal power plant, the water pipeline used for supercritical units, circulating fluidized beds, power generation boilers, steam turbines, generators and other equipment.
Machinery and equipment manufacturing industry: Equipment structures such as pressure vessel, heat exchanger, fluid control, hydraulic transmission, instrumentation and others.
Shipbuilding, papermaking and machinery manufacturing industry: A large number of alloy steel pipe fittings are needed in the manufacturing process.
Custom Range
Caliber
Not limited, can be processed according to customer's drawing size
Wall thickness
Conventional wall thickness range: Sch 5S to Sch XXS
Maximum wall thickness: 100mm
Standard
ASME B16.9, MSS-SP-43, MSS-SP-75, AWWA C208, DIN2605, DIN2615, DIN2616, DIN2617, DIN EN10253, JIS B2313, GB/T13401, GB/T12459, SH3408, SH3409, etc.
