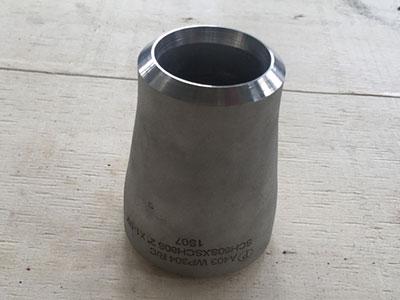

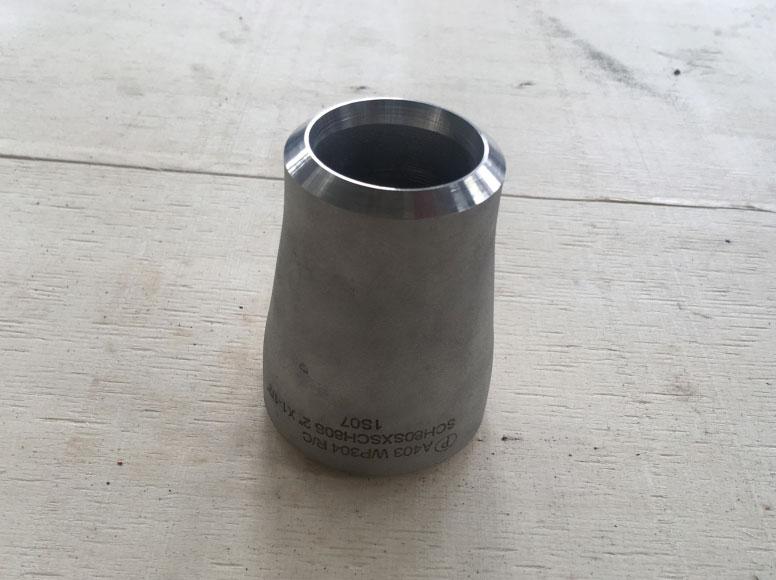

Stainless steel reducer pipe fittings are usually applied to connect two pipes with different diameters in pipe systems. Our company provides both concentric and eccentric reducers, which are all available with various specifications.
Common stainless steel features great resistance to corrosion, high temperature and acid, thus ensuring that our stainless steel reducer is suitable for conveying varieties of corrosive fluid and also could work smoothly in circumstance with high temperature and high pressure.Sample Exhibition 1. Large size stainless steel reducer

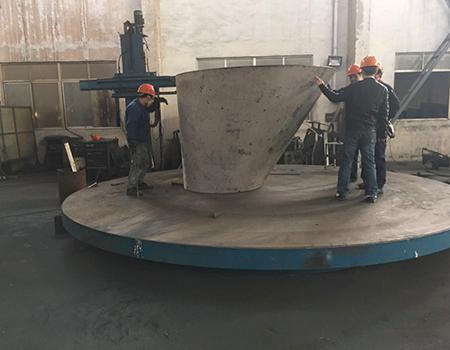

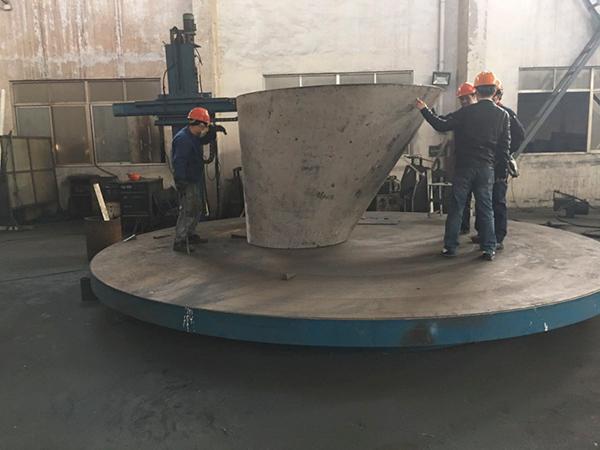

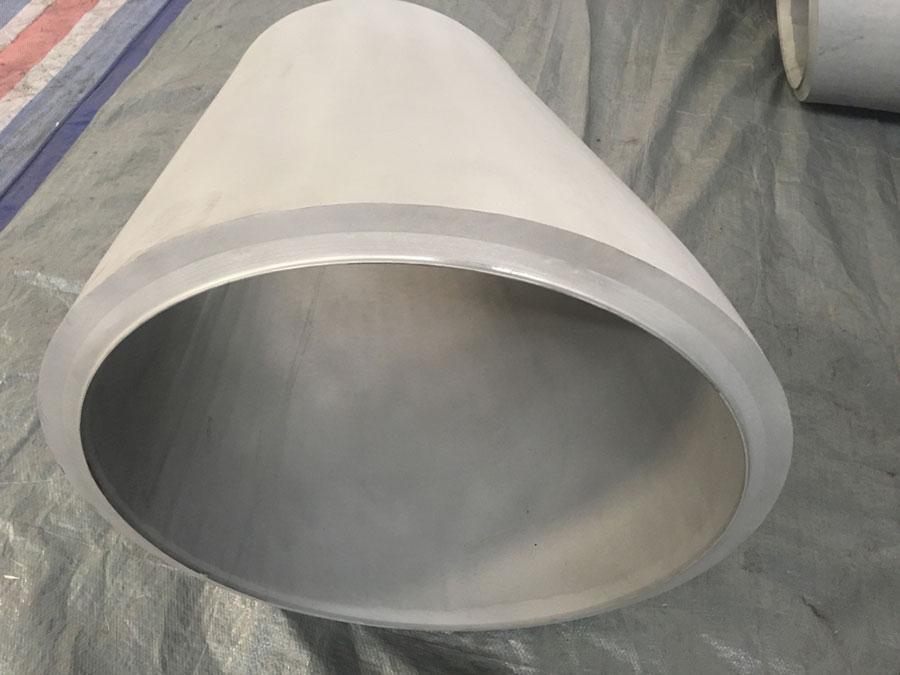

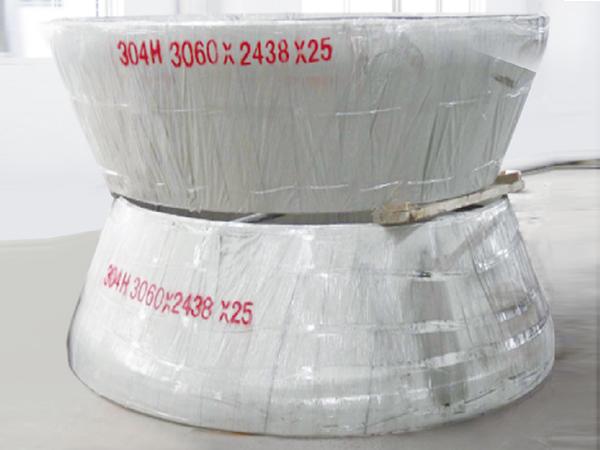

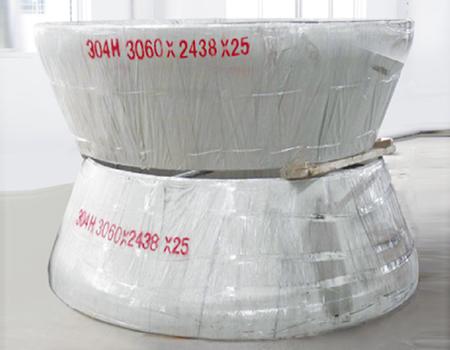

For production of large size stainless steel reducer, two steel plates are placed into corresponding mould for compression molding first by hydraulic press. Then butt welding will be done to attach these two steel pieces together. Through this exact process, the maximum caliber of the seamed stainless steel reducer we could produce reaches 100 inches.
With the whole set of pipe forming moulds with all kinds of dimensions and rich production experience, we are fully capable of implementing cold pressing forming by mold or hot press forming by mandrel to produce seamless stainless steel reducer with varieties of specifications.
Through forging process, we are also able to manufacture stainless steel socket weld reducer or threaded reducer.Recommended Applications
An extensive use of stainless steel fittings can be found in the following industries:
|Wall thickness||Conventional wall thickness range: Sch 5s to Sch XXS |
Maximum wall thickness: 120mm
|Standard||ASME B16.9, MSS-SP-75, DIN2616, DIN2617, JIS B2312, JIS B2313, DIN EN10253, GB/T12459, GB/T13401, GB/T25198, GB/T27684, SH3408, SH3409, GOST17378, etc.|
