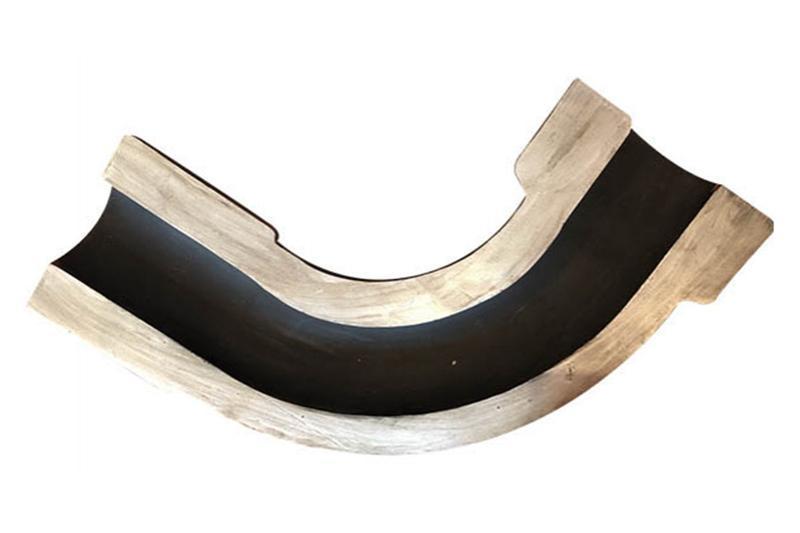

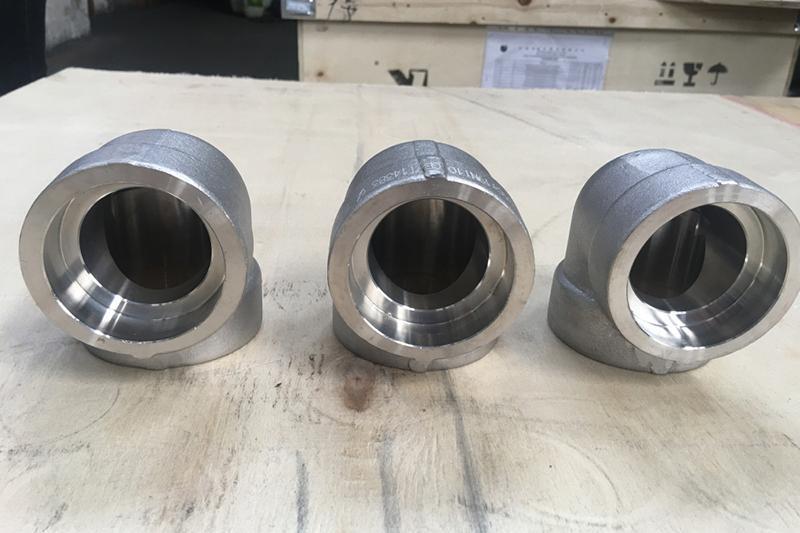

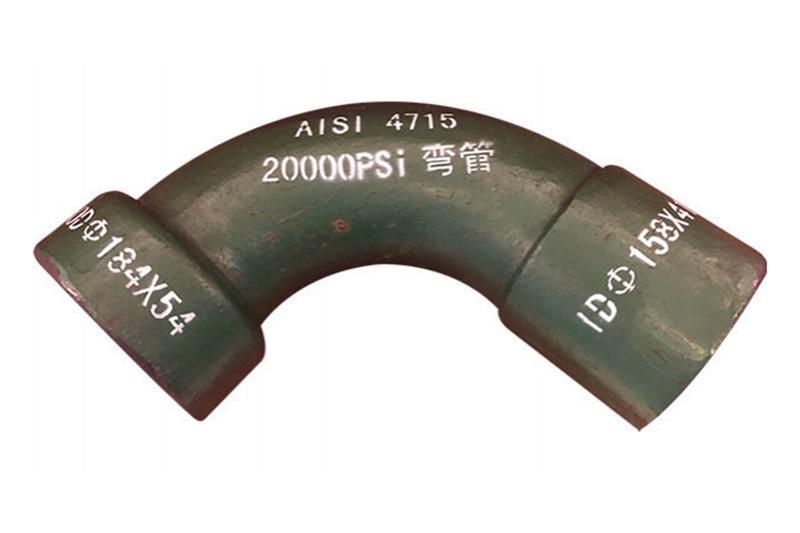

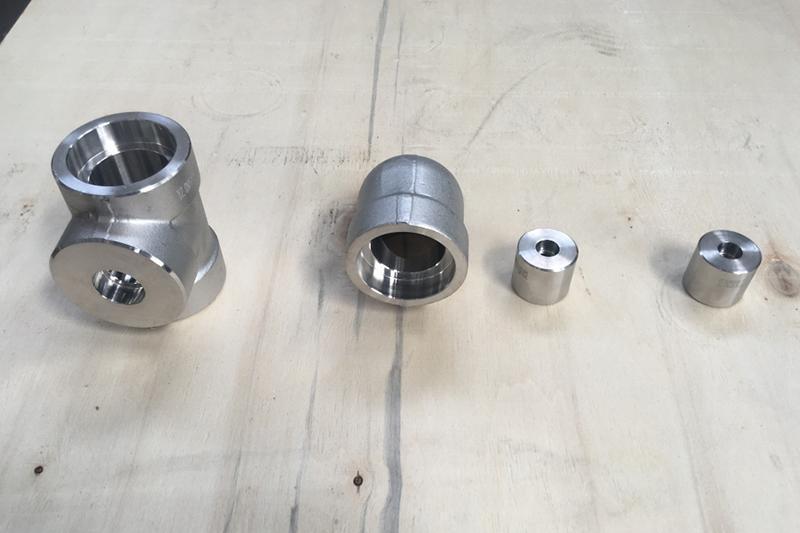

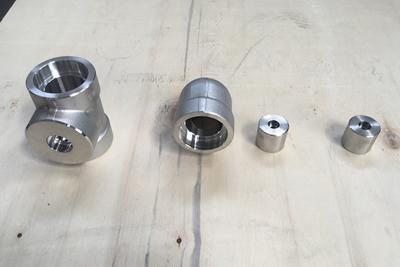

With 30 years experience of pipe fitting production, we are now fully capable of producing socket weld or threaded pipe fittings of different specification though forging process with forge piece of different materials. Our forged pipe fittings are widely applied in high-pressure pipe systems.
Size: OD≤150MM (1/2”-6”)
Wall thickness: Wall thickness range Class 3000, Class 6000, Class 9000, or according to design requirements
Standard: ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, etc.
Stainless Steel Forged Fittings: ASTM A182 F321, F304/304L, F316/316L, F317/317L, F904/904L, F321/321H, F304H, F316H, F347/347H, etc.
Carbon Steel Forged Fittings: ASTM A105, A105N, etc.
Low Temperature Steel Forged Fittings: ASTM A350 LF2, LF3, etc.
Alloy Steel Forged Fittings: ASTM A182 F5, F9, F11, F12, F22, F91, etc.
Pipeline Steel Forged Fittings: ASTM A694 F52, F60, F65, etc.
Duplex Stainless Steel Forged Fittings: ASTM A815 F51, F53, F55, F60, etc.
Nickel Alloy Forged Fittings: ASTM B564 N10276, N04400, N06600, N06625, N06690, N08800, N08825, N08020, N08810, etc.
Titanium Forged Fittings: ASTM B381 F1, F3, F5, F7, etc.
Besides that, aluminum forged fittings, copper forged fittings and non-ferrous forged fittings are all available in Yangzi.
